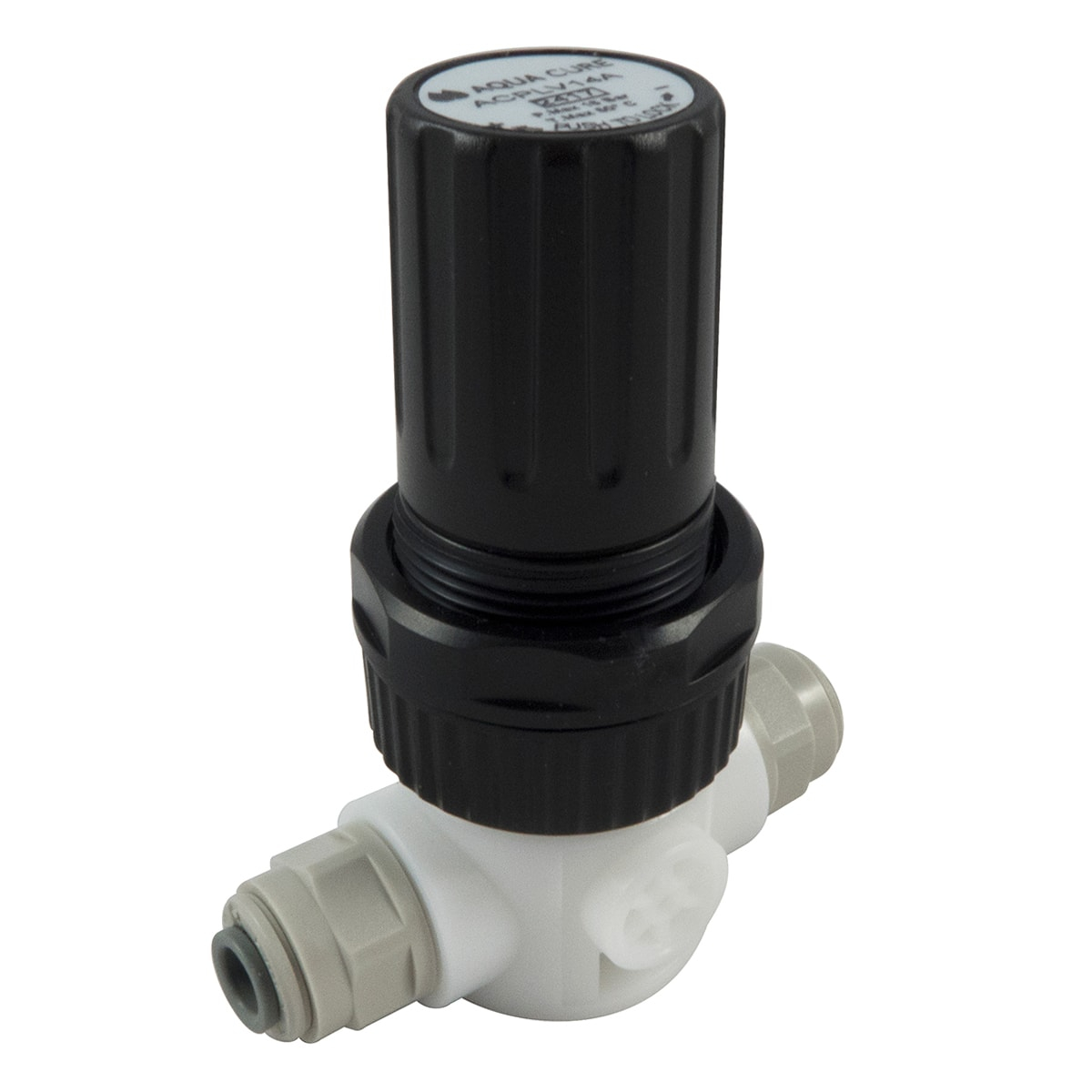

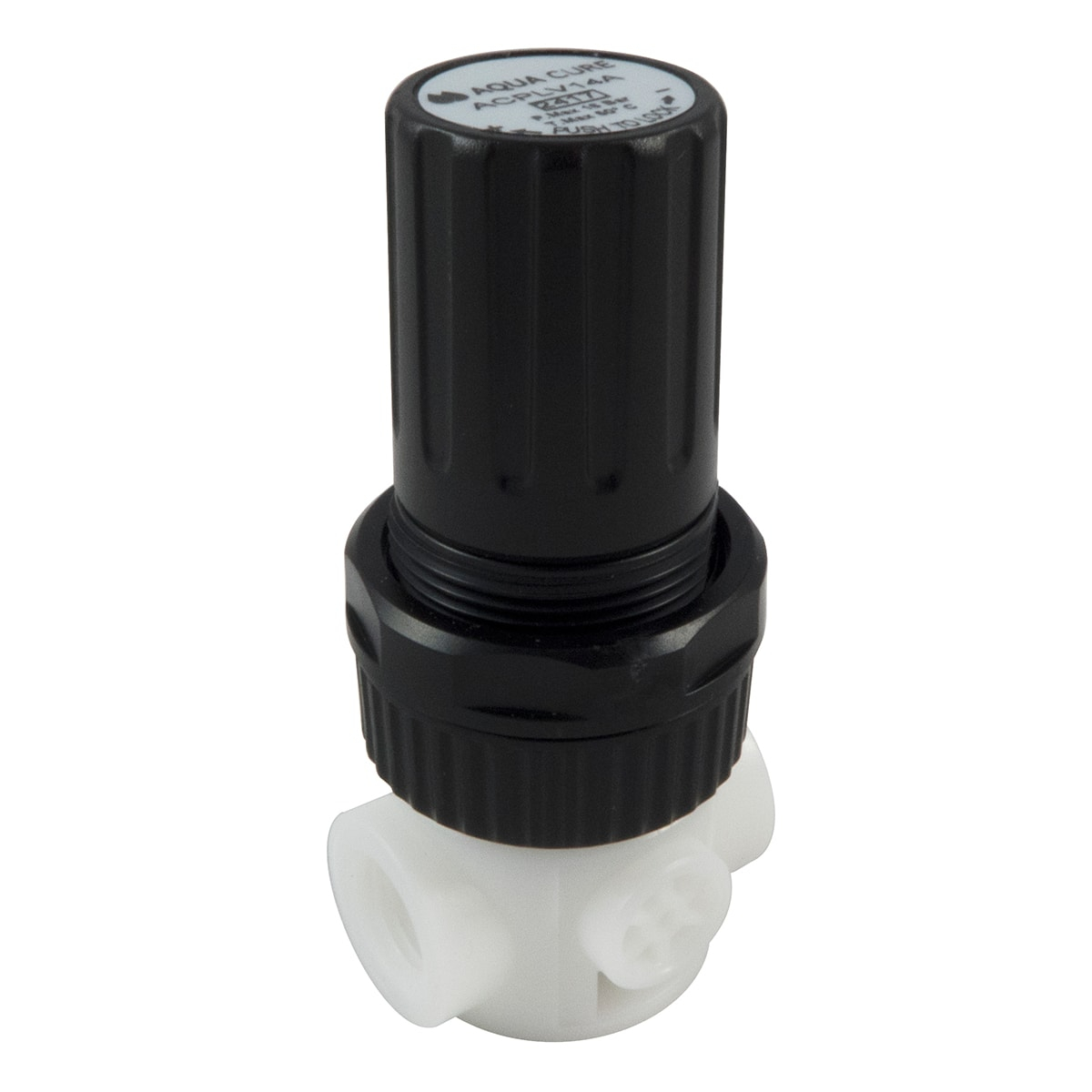

Plastic Pressure Reducing Valve - Adjustable Outlet Pressure
Range of plastic pressure reducing valves which have an outlet pressure preset to 3 bar but can be adjusted from 0 - 4 bar. The adjustable outlet pressure makes this an extremely versatile pressure control solution.
Features a 16 bar maximum inlet pressure and available with either 1/4" BSP female or 1/4" push fit connections.
| Name | Connections (If all are identical) | Price | Availability | Qty |
|---|---|---|---|---|
Code ACPLV14A
|
1/4" BSP Female |
£21.77
|
In stock
|
|
Code ACPLV14APF
|
1/4" Push Fit |
£27.14
|
In stock
|
|
| Brand | Aqua Cure |
|---|---|
| Max. Water Temp | 23°C / 74°F |
| Overall Dimensions | METRIC ACPLV14A - 75mm (h) x 41mm (w) x 38mm (d) ACPLV14APF - 75mm (h) x 73mm (w) x 38mm (d) IMPERIAL ACPLV14A - 2.95" (h) x 1.61" (w) x 1.50" (d) ACPLV14APF - 2.95" (h) x 2.87" (w) x 1.50" (d) |
| Max. Inlet Pressure | 16 bar |
