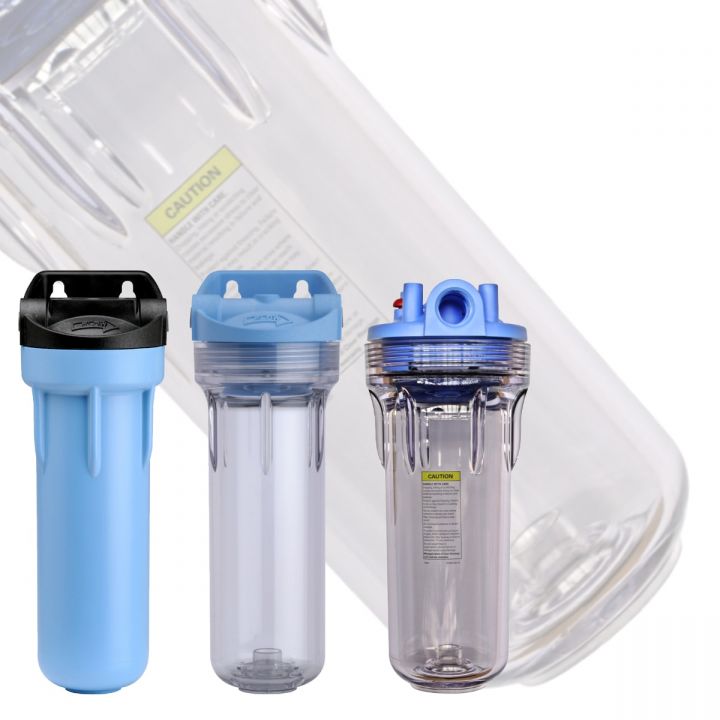

Pentek 3G - 10" Standard Filter Housings
10" standard Pentek 3G filter housings are high quality industrial housings which feature a buttress thread design for improved strength and easier cartridge change.
Blue and clear sump colours are available and all heads feature a pressure release / bleed button. Models available with an integral bracket and meter mount if required.
| Name | Integral Bracket | Meter Mount | Price | Availability | Qty |
|---|---|---|---|---|---|

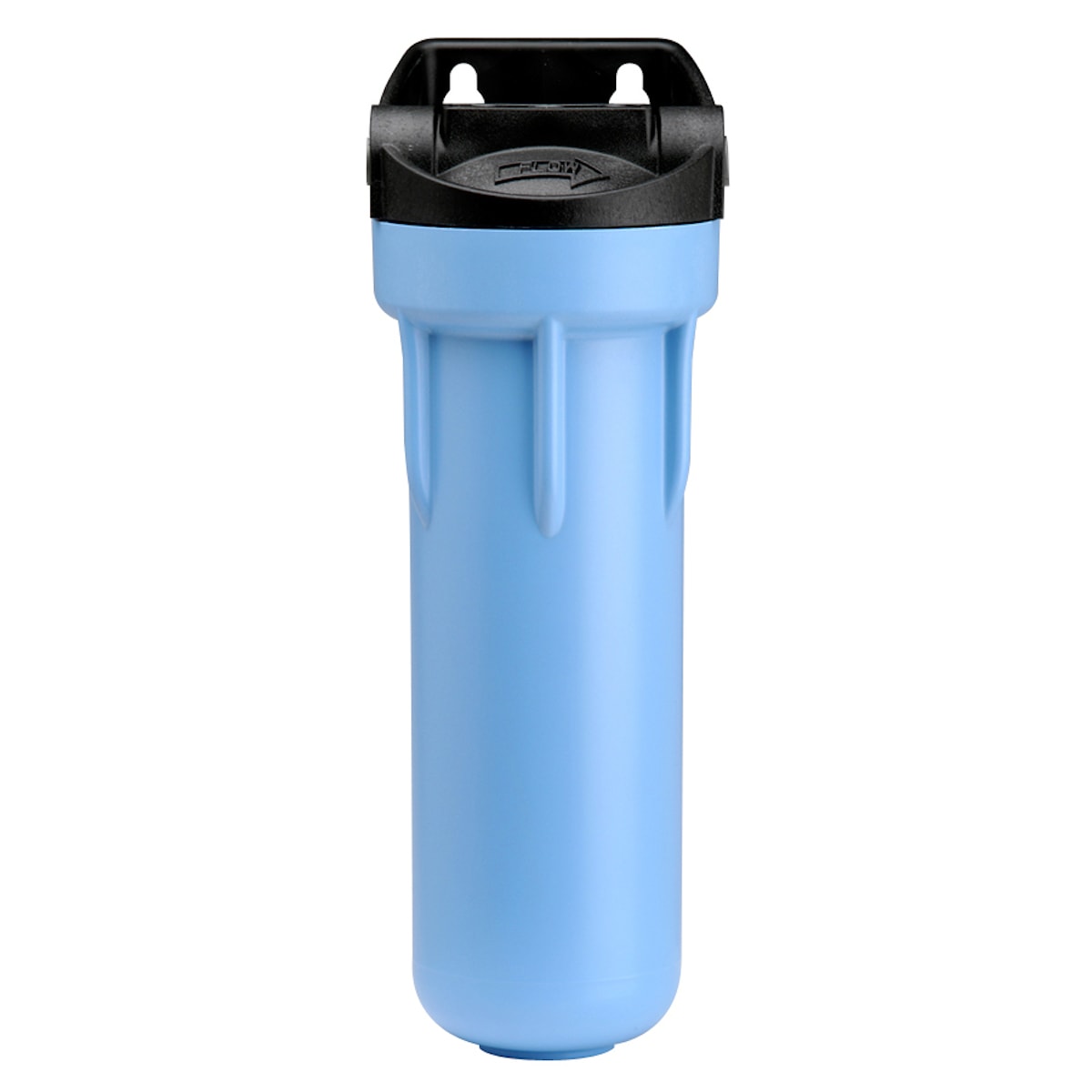

Code 3G100PF
|
Yes | No |
£221.51
|
In stock
|
|
Code 3G100PFM
|
Yes | Yes |
£245.48
|
Stock Warning
|
|

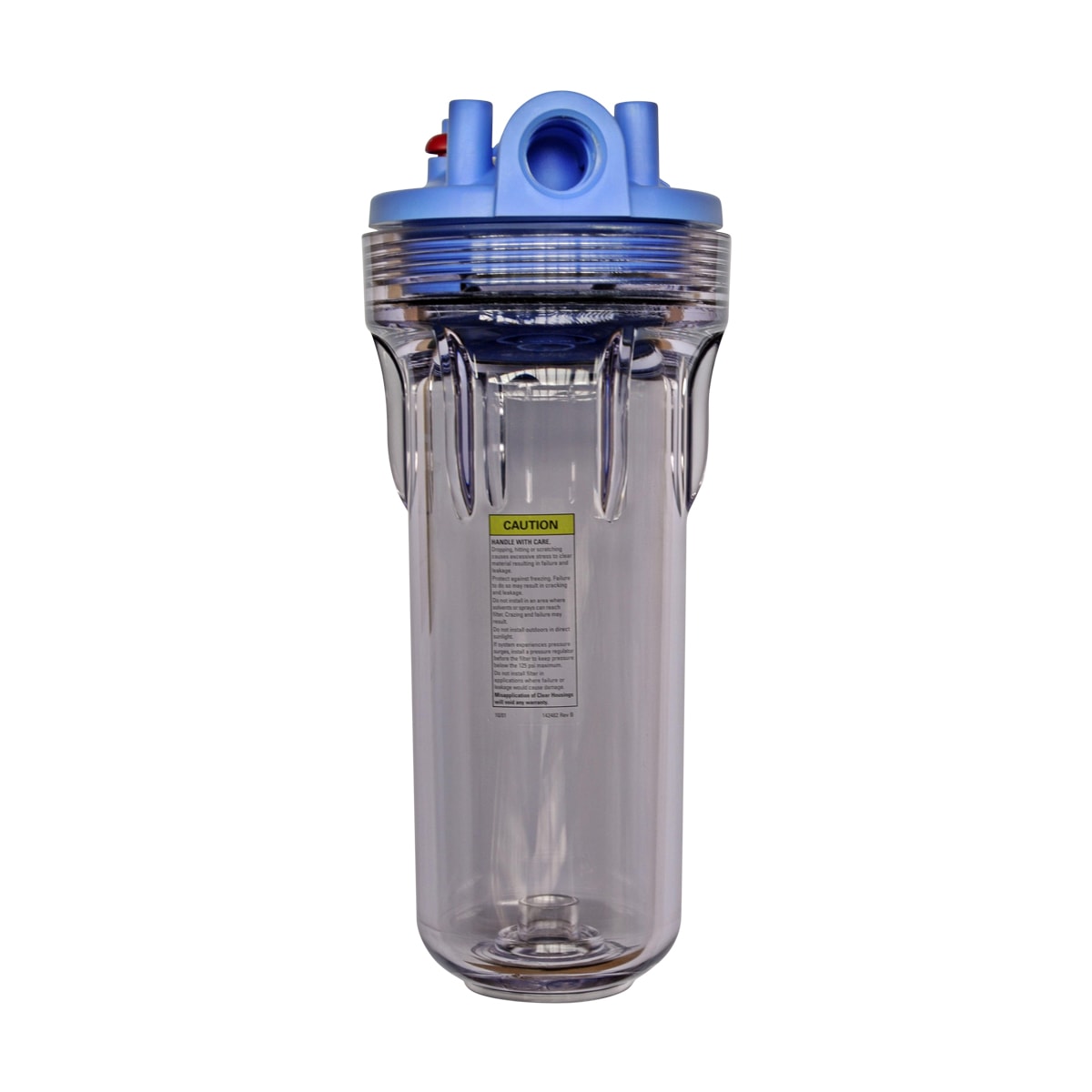

Code 3G100C
|
No | No |
£215.10
|
In stock
|
|

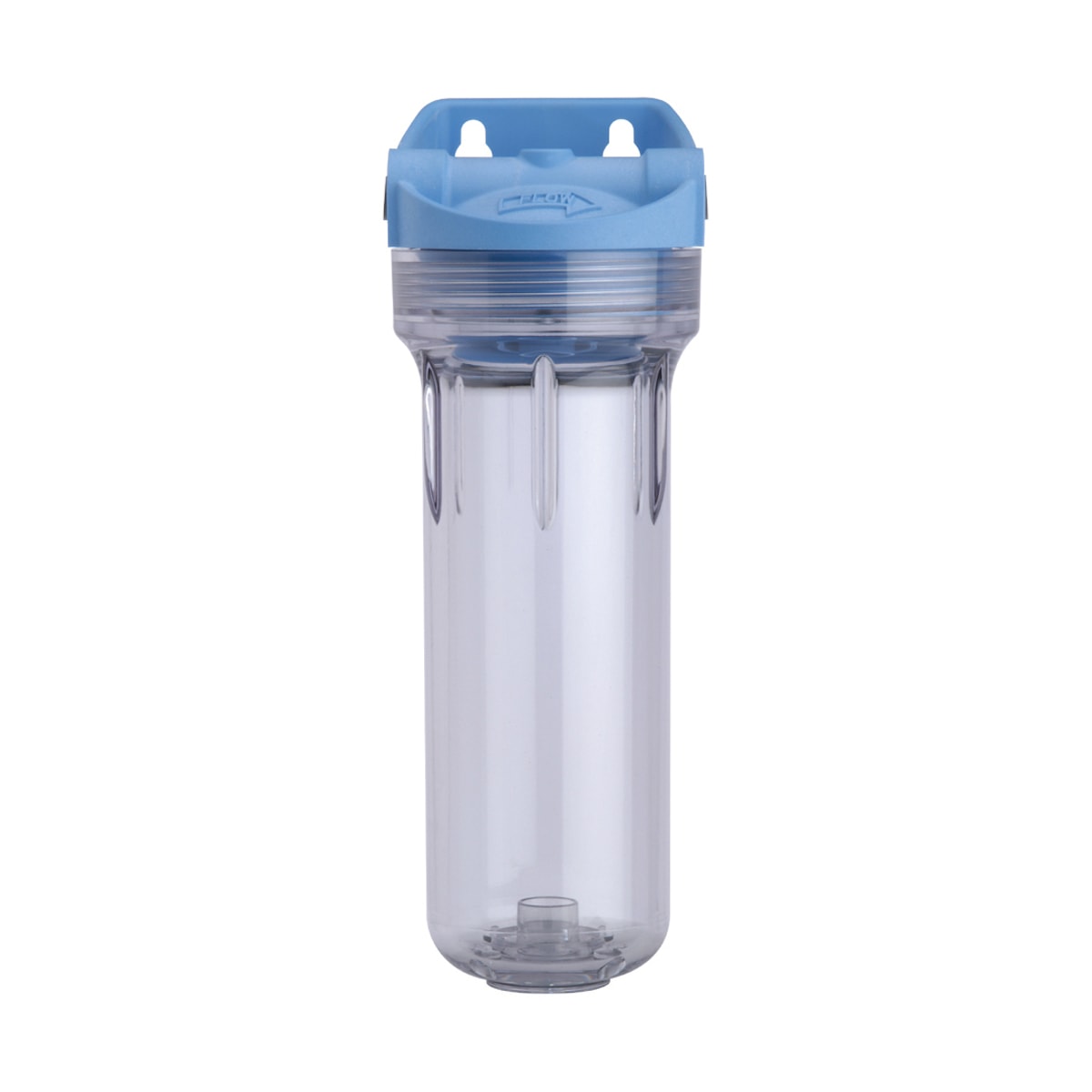

Code 3G100CF
|
Yes | No |
£273.85
|
In stock
|
|
| Brand | Pentek |
|---|---|
| Max. Water Temp | 52°C / 125°F |
| Overall Dimensions | METRIC 3G100PF - 337mm (h) x 146mm (w) 3G100PFM - 337mm (h) x 146mm (w) 3G100C - 324mm (h) x 137mm (w) 3G100CF - 337mm (h) x 146mm (w) IMPERIAL 3G100PF - 13.25" (h) x 5.75" (w) 3G100PFM - 13.25" (h) x 5.75" (w) 3G100C - 12.75" (h) x 5.375" (w) 3G100CF - 13.25" (h) x 5.75" (w) |
| Min. Water Temp | 4°C / 39°F |
| Max. Working Pressure | 8.75 bar / 125 psi |
| Box / Bag Quantity (For Bulk Buy) | 12 |
| Pressure Release | Yes |
| Port Size | 3/4" |
| Port Type | BSP |
| Filter Length | 10" |
